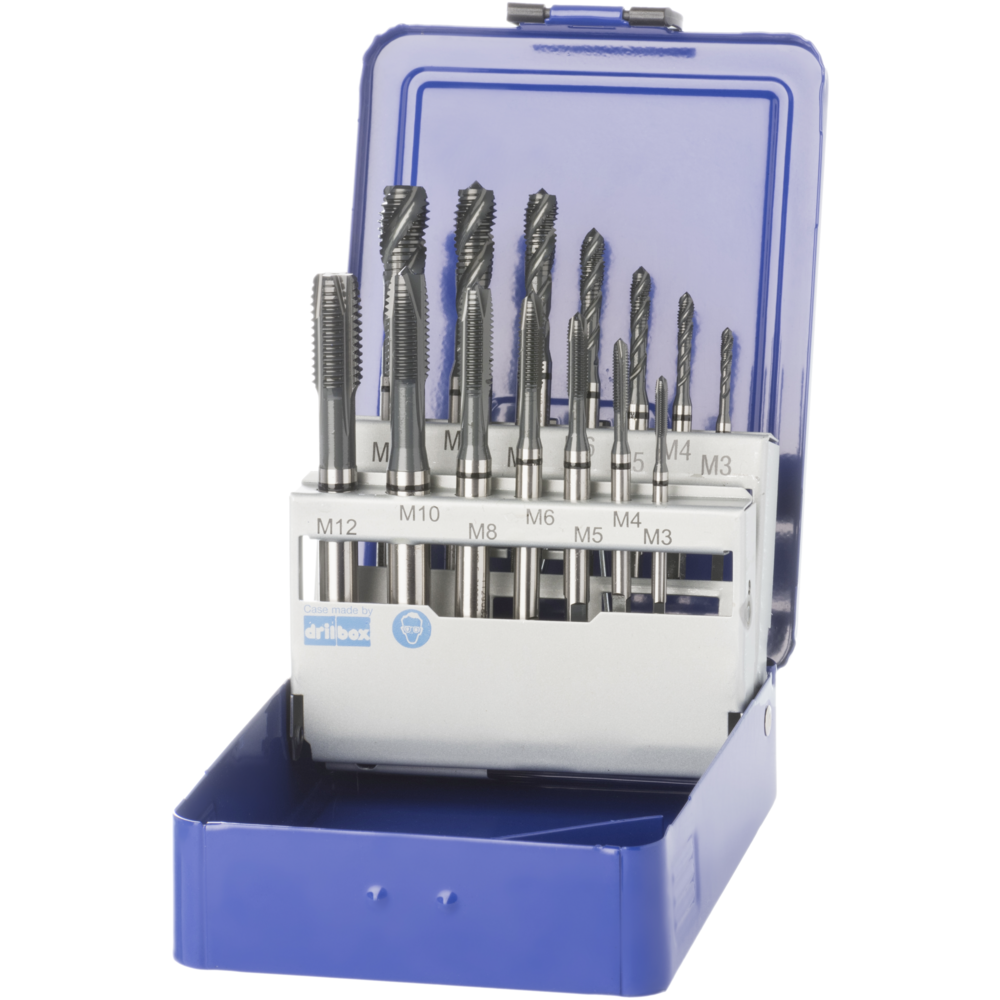

Machine tap set DIN371/376 M3-M12 14-pcs. through/blind-hole (universal) vap.

Price
259,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available

Ordered by 18:00 - delivered tomorrow.

Universal machine tap sets
  • Metric ISO 6H thread
  • Constructional dimensions similar to DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E, vapour-treated
  • Possible thread depth 2.5 x D
  • For universal applications

Universal machine tap sets
  • Metric ISO 6H thread
  • Constructional dimensions similar to DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E, vapour-treated
  • Possible thread depth 2.5 x D
  • For universal applications

Article no./ATORN no.
1347121014 / 11290997
Packaging unit
1
Catalogue page
Cutting values

Technical characteristics

Coating uncoated
Coating uncoated
Contents je 1 Maschinengewindebohrer HSSE 13121 + 13125 M3 / M4 / M5
Contents 14-pcs. set: M3-M12 through-hole and blind-hole thread (1 of each)
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
DIN 371 | 376
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 3
Farbringsystem UNI
fitness hartl total 3
Max. thread depth 2,5xD
Max. thread depth 2,5xD
Number of pieces 14
Number of pieces 14 pc.
Schnittgeschwindigkeit (Bronze kurz) Eignung 3
Schnittgeschwindigkeit (Bronze lang) Eignung 1
Schnittgeschwindigkeit (Bronze lang) Vc 18,00 m/min
Schnittgeschwindigkeit (Kunststoff ) Eignung 1
Schnittgeschwindigkeit (Kunststoff ) Vc 15,00 m/min
Schnittgeschwindigkeit (Messing lang) Eignung 1
Schnittgeschwindigkeit (Messing lang) Vc 19,00 m/min
Surface Vaporised
Surface Vaporised
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
brass short
brass short
cast iron GGG
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
