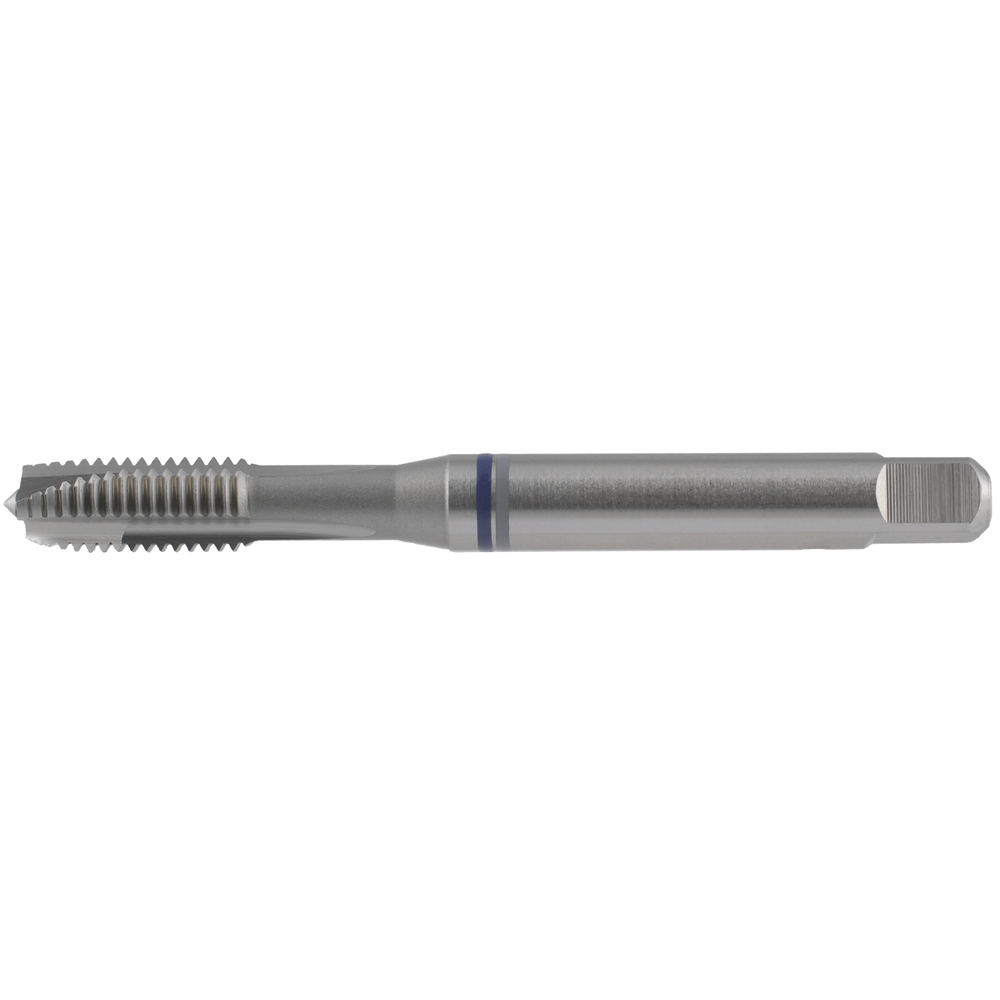

Machine tap HSS-E DIN371B M3 through-hole

Machine tap HSS-E DIN371B M3 through-hole
Machine tap HSS-E DIN371B M3 through-hole Machine tap HSS-E DIN371B M3 through-hole
Price
20,20 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 18:00 - delivered tomorrow.

Up to 1400 N/mm²

Machine tap
  • ISO 6H metric thread
  • Straight-fluted
  • With spiral point, type B, 3.5 to 5-thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E; HSS-E, TiCN-coated
  • For through-hole threads
  • Possible thread depth 3 x D

Up to 1400 N/mm²

Machine tap
  • ISO 6H metric thread
  • Straight-fluted
  • With spiral point, type B, 3.5 to 5-thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E; HSS-E, TiCN-coated
  • For through-hole threads
  • Possible thread depth 3 x D

Article no./ATORN no.
1341350030 / 11290130
Packaging unit
1
Catalogue page
KS-0237
Cutting values
SW-0401

Technical characteristics

C 2,7 mm
C 2,7 mm
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D M 3 mm
D M 3 mm
D1 3,5 mm
D1 3,5 mm
DIN 371
DIN 371
Form/Chamfer B
Form/Chamfer B
L 56 mm
L 56 mm
L1 10 mm
L1 10 mm
L2 18 mm
L2 18 mm
Max. thread depth 3xD
Max. thread depth 3xD
Pitch 0,5 mm
Pitch 0,5 mm
Tapping hole Ø 2,50 mm
Tapping hole Ø 2,50 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Pass-through hole
Threaded hole type Pass-through hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Twist angle 0°
Twist angle 0°

Usage characteristics

aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
cast iron GG/GTS
cast iron GG/GTS
cast iron GGG
cast iron GGG
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based < 30 HRC
titanium alloys
titanium alloys

very suitable
suitable
