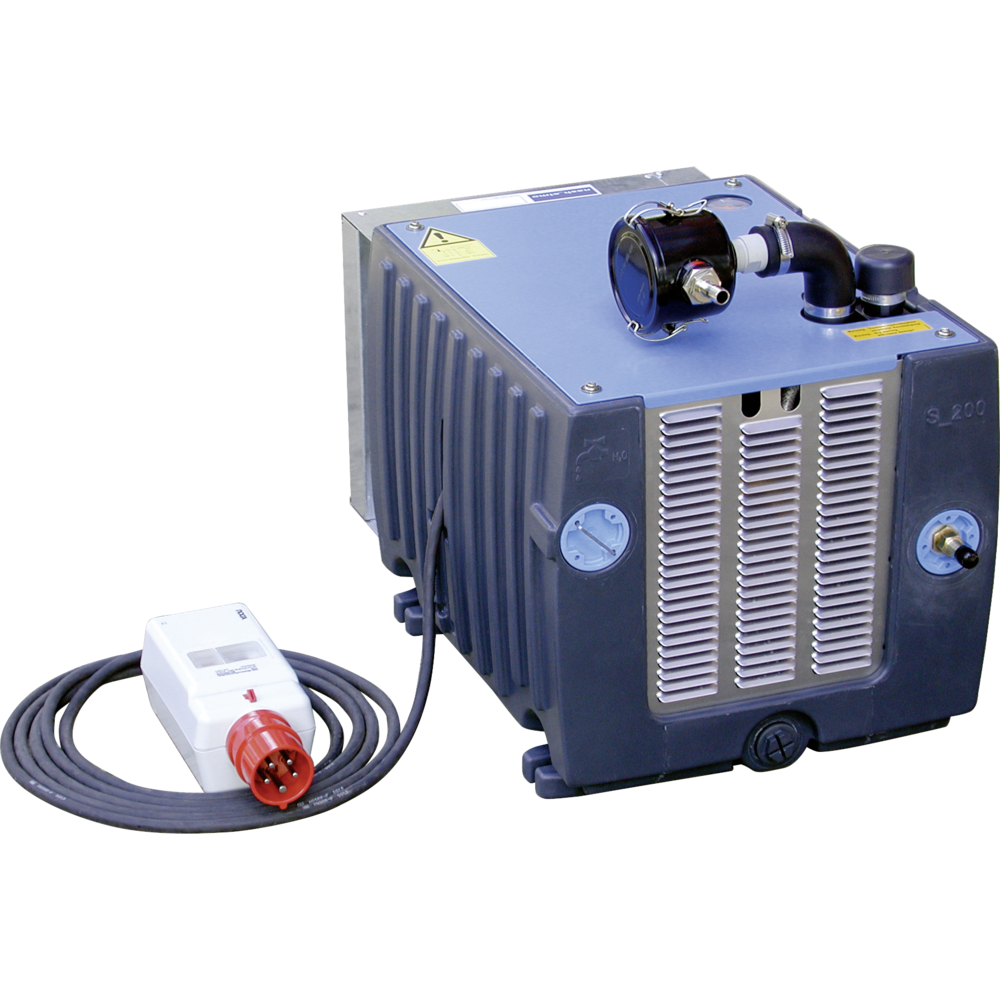

Liquid ring vacuum pump 400 V 16KW suction capacity 25m³/h

Liquid ring vacuum pump 400 V 16KW suction capacity 25m³/h
Liquid ring vacuum pump 400 V 16KW suction capacity 25m³/h
Price
5.049,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Accessories for vacuum clamping technology
Vacuum pumps
  • For the liquid ring vacuum pump, defoamer article no. 742036 0001 is recommended
  • Maintenance and care kit for vacuum pump 16 m³/h article no. 4750841001 is recommended
  • Maintenance and care kit for vacuum pump 21 m³/h, article no. 4750841002 is recommended

Article no./ATORN no.
4750870003
Packaging unit
1
Catalogue page
KS-1298

Technical characteristics

Absorption capacity 25 m³/h
Akku-/Batterieanzahl 0
Breite 432 mm
Clamping surface < 1 m²
Enddruck max. 50 mbar
Höhe 602 mm
Länge 463 mm
Leistung 1,06 kW
Length x width 463 x 432 x 602 mm
Max. suction capacity 25 m³/h l/min
Motor output 400 V / 0,88 kW
Nennspannung 400 V/AC
Nennspannung min. 400 V/AC
Sound-pressure level 50 dB
WEEE (Rücknahme gebrauchter Elektrogeräte) 06
Weight 38 kg
