  • 254125 End milling cutter, solid carbide 35°/38° Z=4 HB, TiAlN

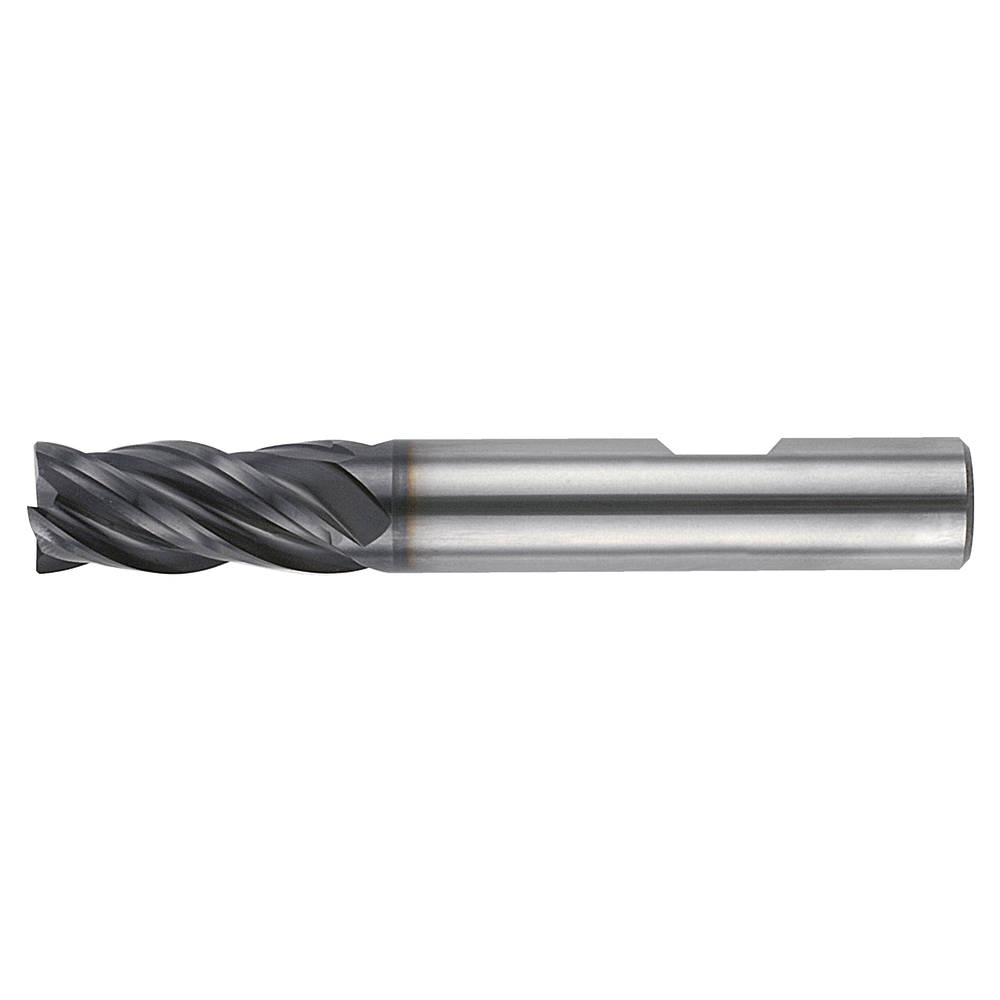

End milling cutter SC 35°/38° 10 mm Z=4 HB, TiAlN

End milling cutter SC 35°/38° 10 mm Z=4 HB, TiAlN
End milling cutter SC 35°/38° 10 mm Z=4 HB, TiAlN End milling cutter SC 35°/38° 10 mm Z=4 HB, TiAlN
2541250030
Price:
24,80 €
(34,30 € catalogue price / 28% saved)
valid until: 31.07.2023
prices excl. vat plus shipping costs

5 units to the next lowest price.

Stock status
Add to shopping cart
Basic Line end milling cutter
  • 4 cutting edges, long, 35°/38° right-hand cutting
  • Irregular helix angle for vibration-free milling
  • Eccentric relief grinding
  • Straight shank in accordance with DIN 6535 HB
  • Cutting material: fine grain solid carbide

Article no./ATORN no.
2541250100
Packaging unit
1
Catalogue page
KS-0436
Cutting values
SW-0732

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 10,0 mm
D1 10,0 mm
F x 45° 0,25 mm
Feed for grooving fz steel < 1000 mm² 0,030 mm/tooth
Feed for side milling fz steel < 1000 mm² 0,052 mm/tooth
L 72 mm
L1 22 mm
Tolerance of cutting edge diameter e8
Tolerance of shank diameter h5
Tool holding device HB parallel shank
Tooth pitch Unequal
Twist angle 35° | 38°
Type NH
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
Catalogue page Download
Cutting values Download
STEP Download
DXF Download
