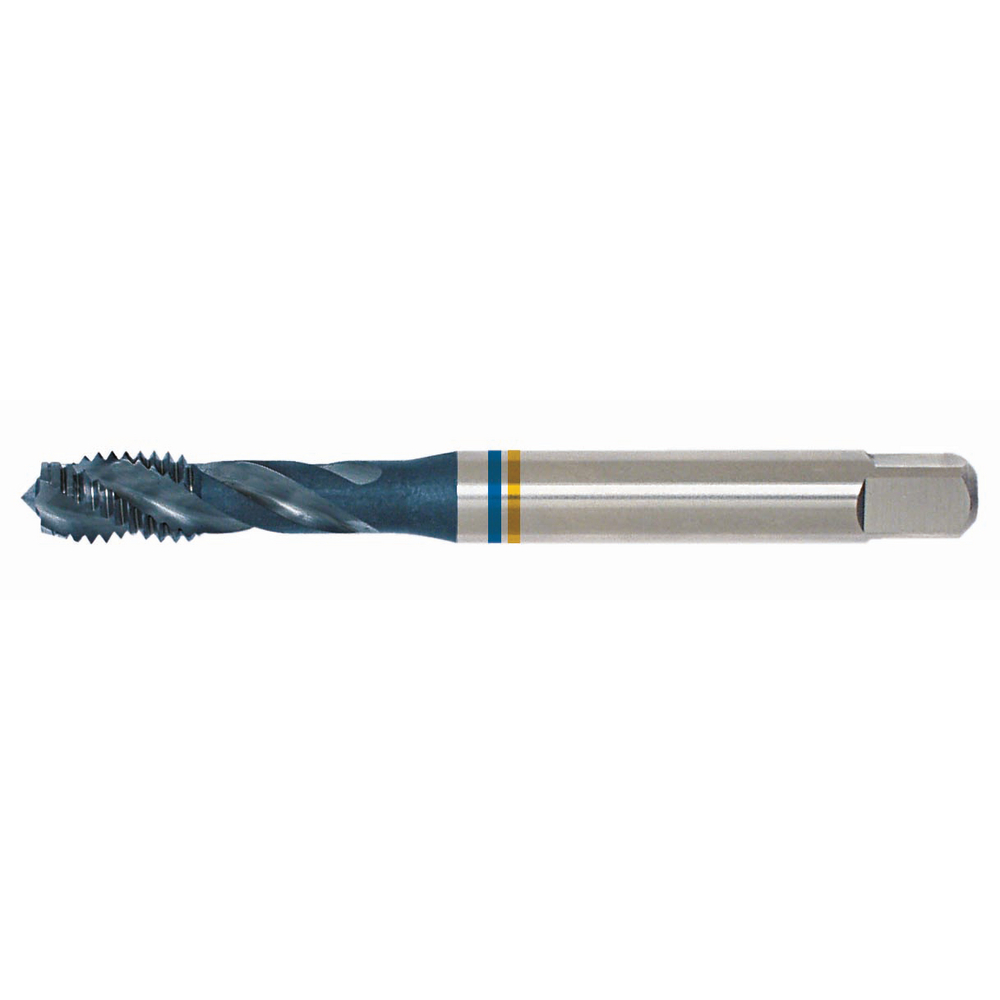

Machine tap HSS-E PM DIN371C 45°, M6 blind-hole thread TiCN

Machine tap HSS-E PM DIN371C 45°, M6 blind-hole thread TiCN
Machine tap HSS-E PM DIN371C 45°, M6 blind-hole thread TiCN Machine tap HSS-E PM DIN371C 45°, M6 blind-hole thread TiCN
Individual price after or registration
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Ideal for steel and stainless steel

Machine tap
  • ISO 6H metric thread
  • 45°, spiral-fluted
  • Type C, 2-3 thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM, TiCN-coated
  • For deep blind bore threads
  • Easy chip removal to the rear
  • Possible thread depth 3 x D

Article no./ATORN no.
1341930610 / 11290766
Packaging unit
1
Alternative items
View alternative items
Catalogue page
KS-0242
Cutting values
KS-0242

Technical characteristics

C 4.9 mm
Coating TiCN
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
D M 6 mm
D1 6 mm
DIN 371
Form/Chamfer C
L 80 mm
L1 16 mm
L2 30 mm
Max. thread depth 3xD
Max. thread depth 2,5xD
Pitch 1 mm
Tapping hole Ø 5.00 mm
Thread M
Thread angle 60 °
Threaded hole type Stud hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps 6H
Twist angle 45°
Twist angle 45° (rechts)

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
