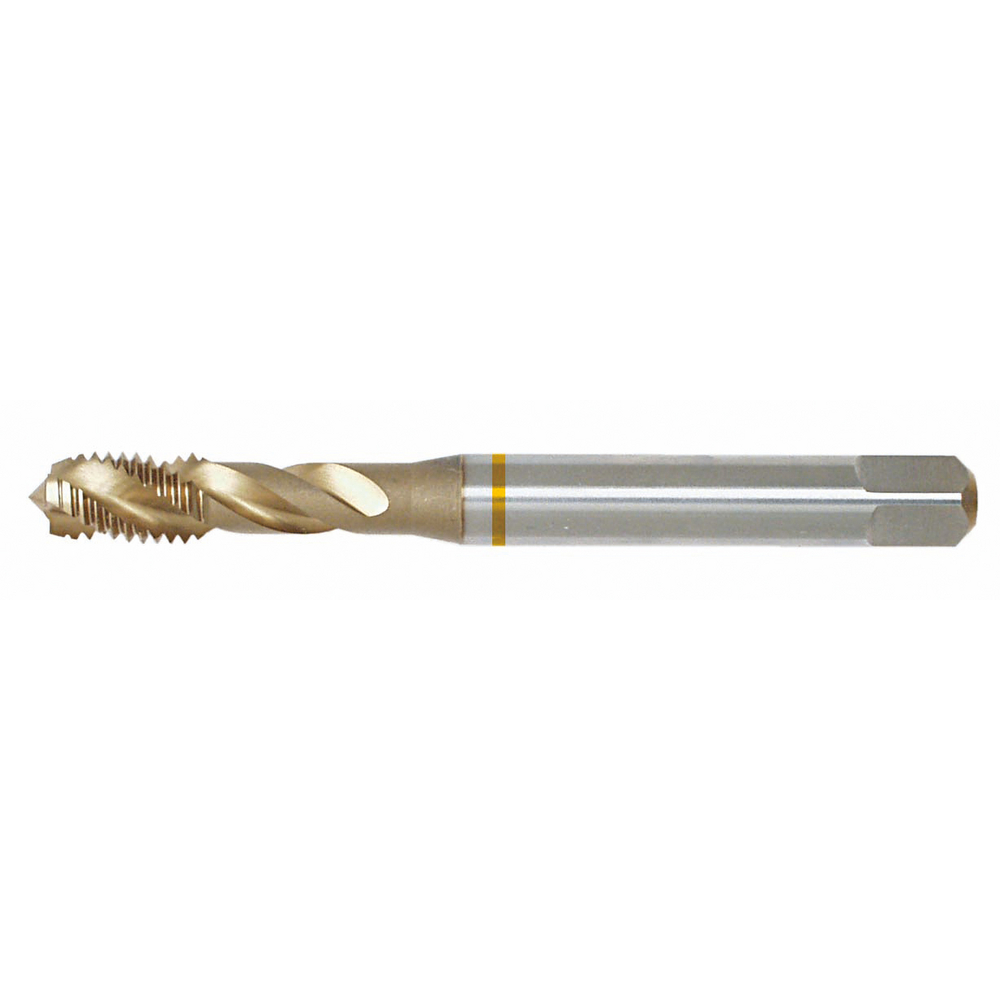

Machine tap HSS-E DIN371C 40° M5 blind-hole thread TiN

Machine tap HSS-E DIN371C 40° M5 blind-hole thread TiN
Machine tap HSS-E DIN371C 40° M5 blind-hole thread TiN Machine tap HSS-E DIN371C 40° M5 blind-hole thread TiN
Individual price after or registration
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

_ItemDeliveryInfoSaratools missing

For stainless steel

Machine tap
  • Metric ISO 6H thread
  • 40° spiral-fluted
  • Form C, 2-3 thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E, vapour-treated; HSS-E, TiN-coated
  • For blind-hole threads, minimum thread relief grinding

Article no./ATORN no.
1342260050 / 11290728
Packaging unit
1
Catalogue page
KS-0243
Cutting values
KS-0243

Technical characteristics

C 4.9 mm
Coating TiN
Cutting data Cutting angle Information - yes
Cutting material HSSE
D M 5 mm
D1 6 mm
Design TiN
DIN 371
Form/Chamfer C
L 70 mm
L1 14 mm
L2 25 mm
Max. thread depth 2,5xD
Max. thread depth 3xD
Pitch 0.8 mm
Tapping hole Ø 4.20 mm
Thread M
Thread angle 60 °
Threaded hole type Stud hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps 6H
Twist angle 40°
Twist angle 40° (rechts)

Usage characteristics

stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²

very suitable
suitable
