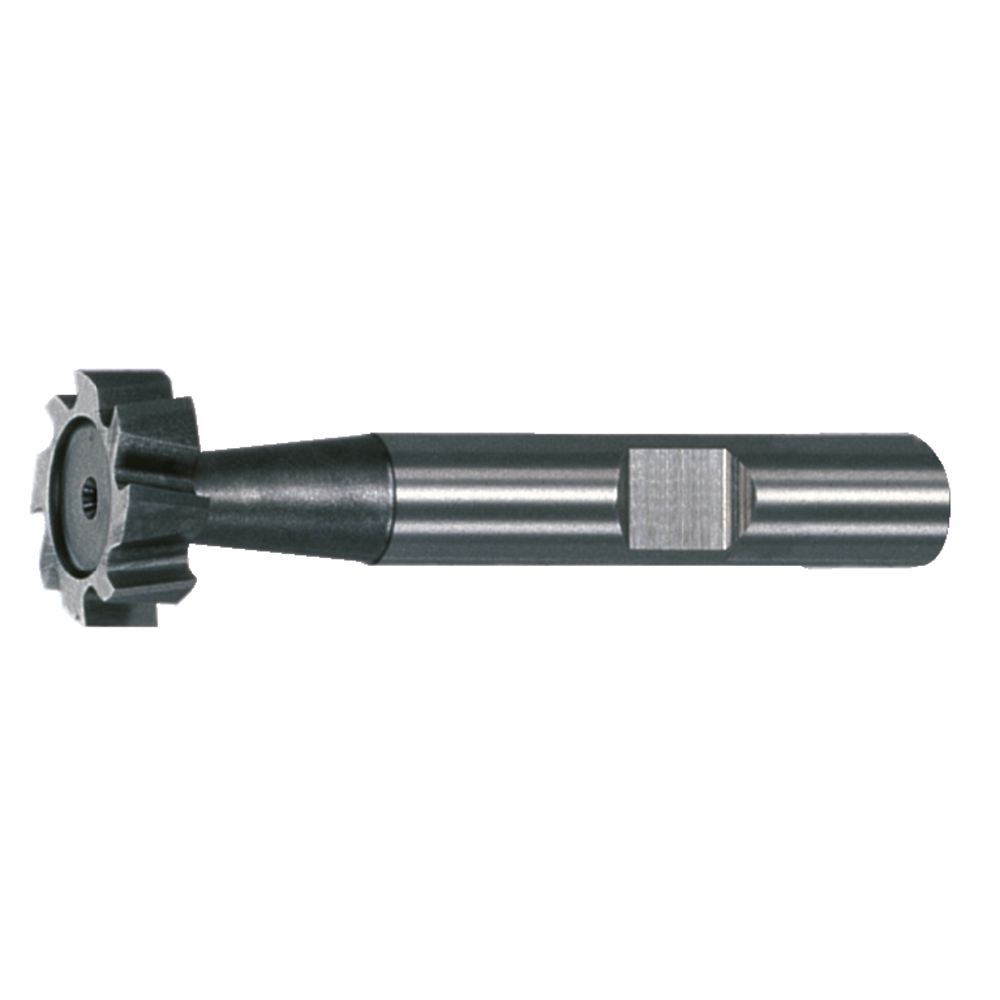

Slotting cutter HSS-E DIN850N 19,5x3mm Z=8

Description

Slotting cutter

With cross-cut toothing
For groove milling in accordance with DIN 6888, P9 fit
* = not DIN-compliant

Article no./ATORN no.

2913600195

Packaging unit

Catalogue page

KS-0573

Cutting values

SW-0730

Stock status

in stock

53,40 €

Add to shopping cart

Compare

Tool Finder

Technical characteristics

Application direction milling	Coating	Cutting data	Cutting material	D	D1	DIN	Feed for grooving fz steel < 1000 mm²	for T-slot	L	Tolerance of cutting edge diameter	Tolerance of shank diameter	Tool holding device	Type	W	Z
Lining	uncoated	Cutting angle Information - yes	HSSE	19,5 mm	10 mm	850	0,06 mm/tooth	3 x 7,5* mm	63 mm	h12 mm	h6	HB parallel shank	N	3 mm	8 pc.

Usage characteristics

aluminium < 8 % Si	aluminium ≥ 8 % Si	brass short	cast iron GG/GTS	cast iron GGG	graphite	hardened steel < 60 HRc	hardened steel ≤ 55 HRC	hardened steel ≤ 65 HRC	stainless steel austenitic	stainless steel duplex	stainless steel ferrit./martens.	steel < 1000 N/mm²	steel < 1400 N/mm²	steel < 700 N/mm²	superalloys Fe/NiCo based < 30 HRC	superalloys Fe/NiCo based ≥ 30 HRc	titanium alloys

very suitable suitable

Catalogue page	Download
Cutting values	Download
STEP	Download
DXF	Download
